This part's status is Obsolete
.
|
Neapco 10-1708
|
| |
|
Quantity in Basket:
None
Code: NEA-10-1708
Price: $35.48
Obsolete
|
| |

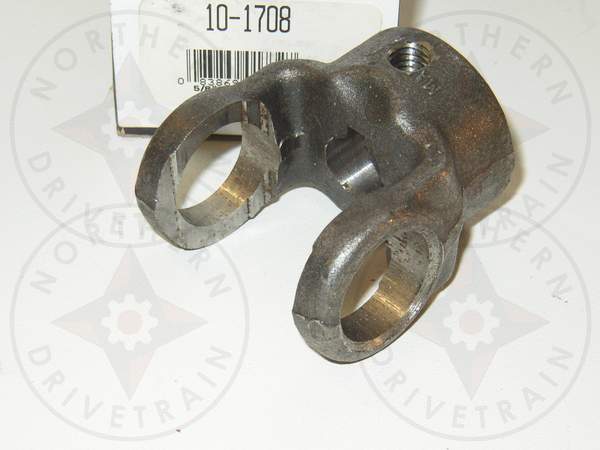

End Yoke - Round Bore
1000 series, Ø0.625 Bore w/0.188 keyway, Ø1.625 hub diameter
|
| General Design Type |
|
Round Bore |
| U-Joint Series |
|
1000 |
| Bore Diameter |
P |
0.625 |
| SAE Keyway Width |
X |
0.188 |
| Hub Diameter |
R |
1.625 |
| Universal Joint Retaining Width |
E |
1.500 |
| Universal Joint Bearing Diameter |
D |
0.938 |
| Length Thru Bore |
Q |
0.000 |
| Centerline of Joint to End of Hub |
S |
1.688 |
| Set Screw Thread |
|
0.375-16 |
| Keyway Location |
|
GAP |
Set Screw Location
Clock position viewed at Hub End and Keyway at 12 |
W |
EAR |
| Joint Angle |
|
0.000 |
| Style |
|
Inside Snap Ring |
| Compatible U-Joint Kits |
|
SPI-5-170X,SPI-5-110X |
| U-Bolt or Strap Assembly |
|
|
| Notes |
|
|
| Cast/Forged |
|
Forged |
