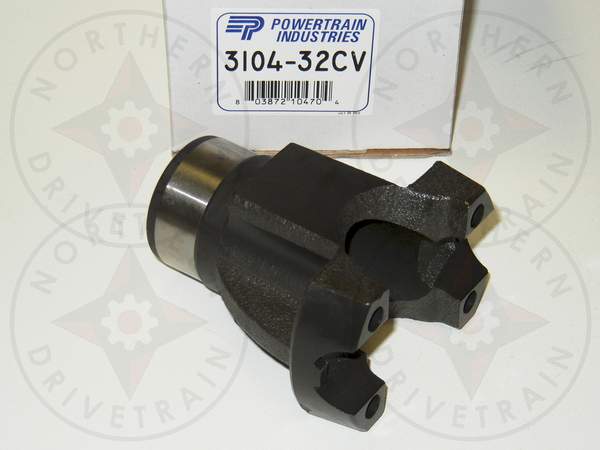

Powertrain Industries 3104-32CV
|
| |
|
Quantity in Basket:
None
Code: PTI-3104-32CV
Price: $50.54
2 In Stock
|
| |
End Yoke - Splined Bore
1310 series, CV Style, Ø1.401x32 spline, Ø1.875 hub diameter
|
The following parts may be used as alternates for this part:
Dana/Spicer 2-4-5341 -- Obsolete
Neapco N2-4-5341 -- In Stock, Our Price: $ 104.56
This part is a member of the following categories:
Search by Application * Transfer Cases * New Process * 203
Search by Application * Transfer Cases * New Process * 205
Search by Category * End Yokes * Splined Bore * 32 Splines * Ø1.401 - 32 Involute
| U-Joint Series |
|
1310 |
| Spline Major Diameter |
|
1.401 |
| Spline Count |
|
32.000 |
| Spline Type |
|
Involute |
| Spline Pressure Angle |
|
45 deg. |
| Ground Hub Diameter |
R |
1.875 |
| Length Thru Bore |
Q |
2.000 |
| Centerline of Joint to End of Spline |
S |
3.875 |
| Universal Joint Retaining Width |
E |
3.219 |
| Universal Joint Bearing Diameter |
D |
1.062 |
| Counterbore Depth |
|
0.330 |
| Joint Angle |
|
0.000 |
| Style |
|
CV |
| Compatible U-Joint Kits |
|
SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| U-Bolt or Strap Assembly |
|
Not used |
| Bare Yoke part number (if assembly - included) |
|
|
| Slinger Part Number (if assembly - included) |
|
|
| Notes |
|
Same as SPI-2-4-5341 |
| Cast/Forged |
|
Cast |
