This part's status is Obsolete
.
|

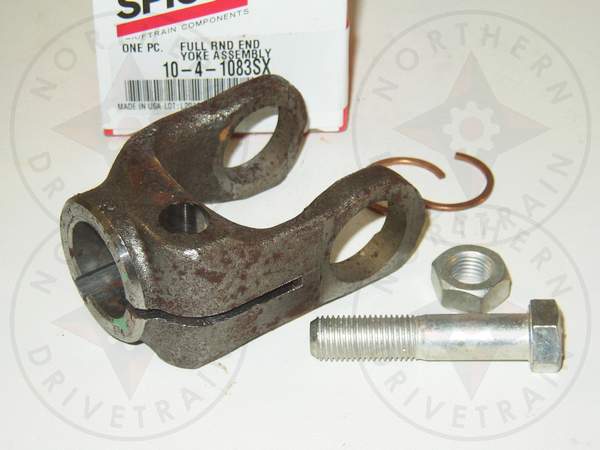

Spicer 10-4-1083SX
|
| |
|
Quantity in Basket:
None
Code: SPI-10-4-1083SX
Price: $79.88
Obsolete
|
| |
Steering Shaft Yoke
1000 series, Ø.9860/.9850 Bore
|
| General Design Type |
|
Straight Round Bore |
| U-Joint Series |
|
1000 |
| Spline Major Diameter |
|
0.000 |
| Spline Minor Diameter (Nominal) |
|
0.000 |
| Spline Type |
|
Keyed bore - no spline |
| Bore Diameter |
|
.9860/.9850 |
| Keyway Size |
|
0.188 |
| Bolt Hole Diameter |
|
0.467 |
| |
|
1.750 |
| Centerline of Bolt Hole to End of Hub |
J |
0.625 |
| Top of Bolt Hole to Centerline of Spline |
L |
0.000 |
| Center of Bolt Hole to Center of Spline |
L1 |
0.560 |
| Centerline of Joint to End of Hub |
S |
2.375 |
| Universal Joint Retaining Width |
K |
1.500 |
| Universal Joint Bearing Diameter |
D |
0.938 |
| Compatible U-Joint Kits |
|
SPI-5-103X |
| Notes |
|
|
| Cast/Forged |
|
Forged |
