This part's status is Obsolete
.
|

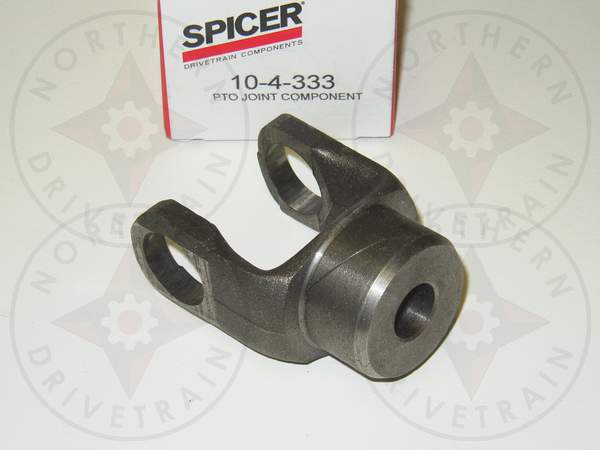

Spicer 10-4-333
|
| |
|
Quantity in Basket:
None
Code: SPI-10-4-333
Price: $40.09
Obsolete
|
| |
End Yoke - Round Bore
1000 series, Ø0.625 Bore, Ø1.625 hub diameter
|
| General Design Type |
|
Round Bore |
| U-Joint Series |
|
1000 |
| Bore Diameter |
P |
0.625 |
| SAE Keyway Width |
X |
0.000 |
| Hub Diameter |
R |
1.625 |
| Universal Joint Retaining Width |
E |
1.500 |
| Universal Joint Bearing Diameter |
D |
0.938 |
| Length Thru Bore |
Q |
1.030 |
| Centerline of Joint to End of Hub |
S |
2.500 |
| Set Screw Thread |
|
|
| Keyway Location |
|
|
Set Screw Location
Clock position viewed at Hub End and Keyway at 12 |
W |
|
| Joint Angle |
|
0.000 |
| Style |
|
Inside Snap Ring |
| Compatible U-Joint Kits |
|
SPI-5-170X,SPI-5-110X |
| U-Bolt or Strap Assembly |
|
|
| Notes |
|
High angle yoke |
| Cast/Forged |
|
|
