Spicer 170-2-39-1
|
| |
|
Quantity in Basket:
None
Code: SPI-170-2-39-1
Price: $524.14
|
| |

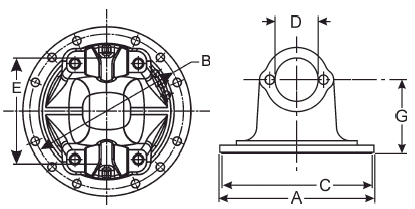

Flange Yoke
SPL170 series, 12xØ.479 Holes on 7.250BC, Ø7.750M pilot
|
This part is a member of the following categories:
Search by Category * Flange Yokes * Other Sizes
| Design Style |
|
Spicer Life Series |
| U-Joint Series |
|
SPL170 |
| Universal Joint Retaining Width |
|
6.456 |
| Universal Joint Bearing Diameter |
D |
2.166 |
| Flange Diameter |
A |
8.000 |
| Bolt Circle Diameter |
B |
7.250 |
| Horizontal Distance Between Holes (center to center) |
|
0.000 |
| Vertical Distance Between Holes (center to center) |
|
0.000 |
| Bolt Hole Diameter |
|
.479-D |
| Bolt Hole Quantity |
|
12.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
7.750M |
| Centerline of Joint to Flange Face |
G |
3.375 |
| Compatible U-Joint Kits |
|
SPI-SPL170-4X |
| |
|
0.000 |
| Notes |
|
Half round metric flange |
| Cast/Forged |
|
|
