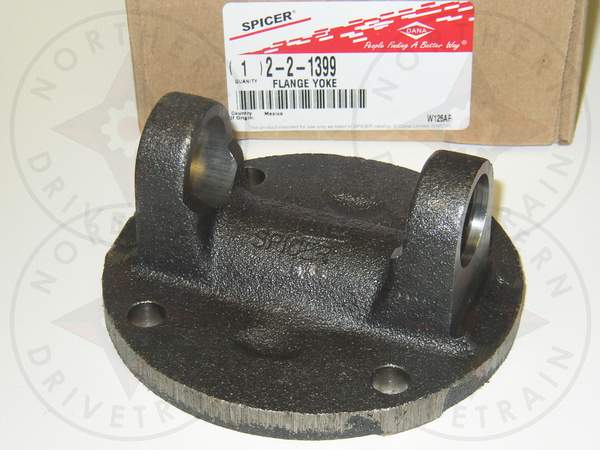

Spicer 2-2-1399
	Quantity in Basket: None Code: SPI-2-2-1399 Price: $52.26 Obsolete
Flange Yoke 1330 series, 4xØ.453 Holes on 4.250BC, Ø3.125F pilot

Design Style		Snap Ring Design
U-Joint Series		1330
Universal Joint Retaining Width		3.875
Universal Joint Bearing Diameter	D	1.062
Flange Diameter	A	5.156
Bolt Circle Diameter	B	4.250
Horizontal Distance Between Holes (center to center)		3.005
Vertical Distance Between Holes (center to center)		3.005
Bolt Hole Diameter		.453-D
Bolt Hole Quantity		4.000
Pilot Diameter (M-Male, F-Female)	C	3.125F
Centerline of Joint to Flange Face	G	1.688
Compatible U-Joint Kits		SPI-5-213X,SPI-5-1330X,SPI-SPL25-1X
		0.000
Notes		Bolts holes are equally spaced
Cast/Forged		Cast

Known Idenfiying Marks (Casting/Forging numbers, etc.):

	Mark		Location
	C2-2-691		between yoke ears
