Spicer 2-2-1989
|
| |
|
Quantity in Basket:
None
Code: SPI-2-2-1989
Price: $66.66
4 In Stock
|
| |

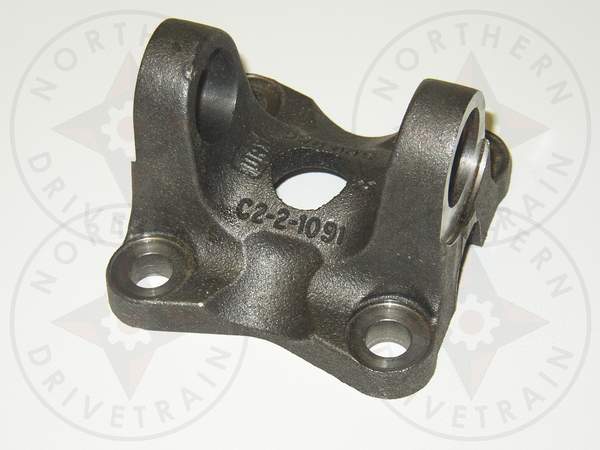

Flange Yoke
1310 series, 4xØ.489 Holes on 3.937BC, Ø2.162F pilot
|
This part is a member of the following categories:
Search by Category * Flange Yokes * 1310
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1310 |
| Universal Joint Retaining Width |
|
3.469 |
| Universal Joint Bearing Diameter |
D |
1.062 |
| Flange Diameter |
A |
4.906 |
| Bolt Circle Diameter |
B |
3.937 |
| Horizontal Distance Between Holes (center to center) |
|
2.785 |
| Vertical Distance Between Holes (center to center) |
|
2.785 |
| Bolt Hole Diameter |
|
.489-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
2.162F |
| Centerline of Joint to Flange Face |
G |
1.930 |
| Compatible U-Joint Kits |
|
SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X |
| |
|
0.000 |
| Notes |
|
Bolt holes are equally spaced. Part has hole thru center. |
| Cast/Forged |
|
Cast |
Known Idenfiying Marks (Casting/Forging numbers, etc.):
| | Mark | | Location |
| |
C2-2-1091
| |
cast into base of flange yoke |
