Spicer 2-4-553
	Quantity in Basket: None Code: SPI-2-4-553 Price: $148.17
	Quantity:

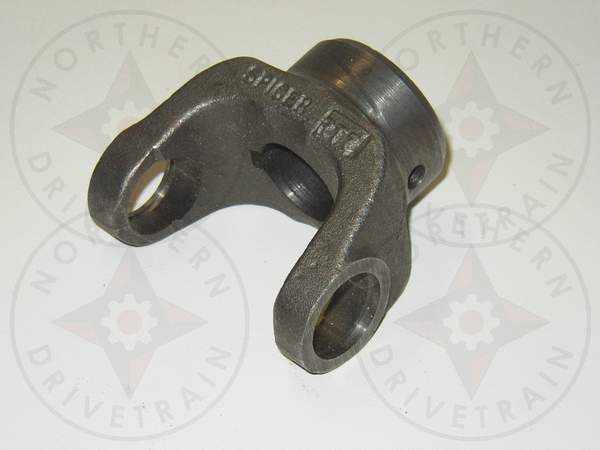

End Yoke - Round Bore 1310 series, Ø1.188 Bore w/0.312 keyway, Ø2.125 hub diameter

This part is a member of the following categories:

Search by Category * End Yokes * Round Bore

General Design Type		Round Bore
U-Joint Series		1310
Bore Diameter	P	1.188
SAE Keyway Width	X	0.312
Hub Diameter	R	2.125
Universal Joint Retaining Width	E	3.469
Universal Joint Bearing Diameter	D	1.062
Length Thru Bore	Q	0.000
Centerline of Joint to End of Hub	S	2.562
Set Screw Thread		0.375
Keyway Location		12
Set Screw Location Clock position viewed at Hub End and Keyway at 12	W	6
Joint Angle		0.000
Style		Snap Ring
Compatible U-Joint Kits		SPI-5-153X,SPI-5-1310X,SPI-5-1310-1X
U-Bolt or Strap Assembly
Notes
Cast/Forged		Cast
