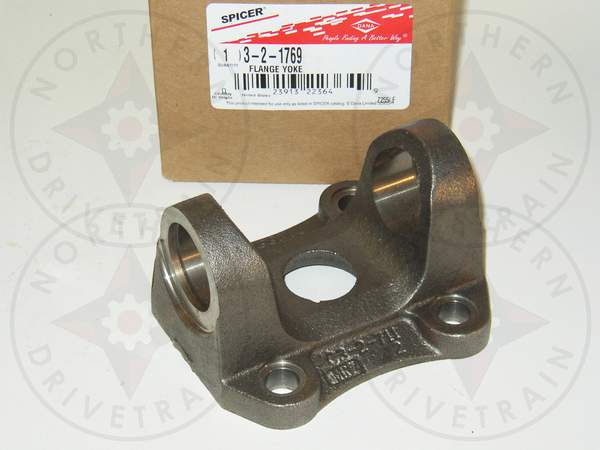

Flange Yoke
1480 series, 4xØ.509 Holes on 4.252BC, Ø2.680F pilot
|
| Design Style |
|
Snap Ring Design |
| U-Joint Series |
|
1480 |
| Universal Joint Retaining Width |
|
4.438 |
| Universal Joint Bearing Diameter |
D |
1.375 |
| Flange Diameter |
A |
5.354 |
| Bolt Circle Diameter |
B |
4.252 |
| Horizontal Distance Between Holes (center to center) |
|
3.006 |
| Vertical Distance Between Holes (center to center) |
|
3.006 |
| Bolt Hole Diameter |
|
.509-D |
| Bolt Hole Quantity |
|
4.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
2.680F |
| Centerline of Joint to Flange Face |
G |
1.800 |
| Compatible U-Joint Kits |
|
SPI-5-188X,SPI-SPL55X,SPI-SPL55-1X |
| |
|
0.000 |
| Notes |
|
Bolt holes are equally spaced. Part has hole thru center. |
| Cast/Forged |
|
Cast |
Known Idenfiying Marks (Casting/Forging numbers, etc.):
| | Mark | | Location |
| |
C3-2-711-2
| |
In base of flange |
