Spicer 6.3-2-19
|
| |
|
Quantity in Basket:
None
Code: SPI-6_3-2-19
Price: $326.95
|
| |
Flange Yoke
1760 series, 12xØ.438 Holes on 7.250BC, Ø7.750M pilot
|
The following parts may be used as alternates for this part:
Neapco N6_3-2-19
This part is a member of the following categories:
Search by Category * Flange Yokes * Other Sizes

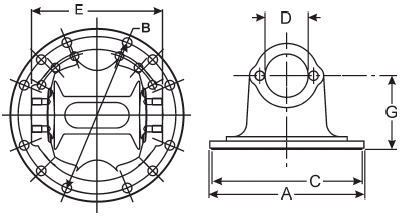

| Design Style |
|
Bearing Plate Design |
| U-Joint Series |
|
1760 |
| Universal Joint Retaining Width |
|
7.000 |
| Universal Joint Bearing Diameter |
D |
1.938 |
| Flange Diameter |
A |
8.000 |
| Bolt Circle Diameter |
B |
7.250 |
| Horizontal Distance Between Holes (center to center) |
|
0.000 |
| Vertical Distance Between Holes (center to center) |
|
0.000 |
| Bolt Hole Diameter |
|
.438-D |
| Bolt Hole Quantity |
|
12.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
7.750M |
| Centerline of Joint to Flange Face |
G |
3.375 |
| Compatible U-Joint Kits |
|
SPI-5-407X,SPI-5-677X |
| |
|
0.000 |
| Notes |
|
|
| Cast/Forged |
|
|
