Spicer 8-1-821X
	Quantity in Basket: None Code: SPI-8-1-821X Price: $1,124.36 Obsolete
Companion Flange - Splined Bore 1850 series, Ø2.635x20 spline, Ø4.004 hub diameter 8x.625 Tapped Holes on 8.250BC, Ø6.992-M pilot

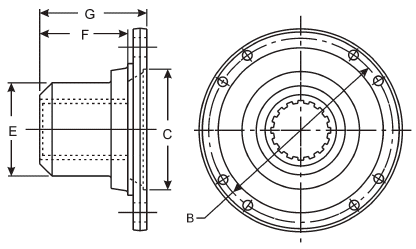

U-Joint Series		1850
Spline Major Diameter	D	2.635
Spline Count		20.000
Spline Type		Involute Spline
Pilot Bore Diameter	C	6.992-M
Bolt Circle Diameter	B	8.250
Bolt Circle Hole Diameter (D = Drilled, T = Tapped)		.625 T
Number of Holes		8.000
Brake Pilot Diameter		0.000
Ground Hub Diameter	E	4.004
Length Thru Bore	F	3.305
Flange Face to End of Hub	G	4.442
Bare Flange Part Number (if assembly)		SPI-8-1-811
Slinger Part Number (if assembly)		SPI-230888
Notes		.560 deep counterbore at hub end; Slinger not sold separately.

This part contains the following parts:

SPI-8-1-811 - Companion Flange - Splined Bore --
SPI-230888 - Slinger --
