Spicer 8-2-109
|
| |
|
Quantity in Basket:
None
Code: SPI-8-2-109
Price: $620.34
|
| |
Flange Yoke
1880 series, 8xØ.625 Holes on 8.250BC, Ø7.000M pilot
|
This part is a member of the following categories:
Search by Category * Flange Yokes * Other Sizes

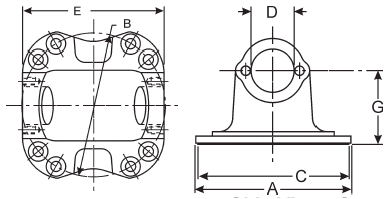

| Design Style |
|
Bearing Plate Design |
| U-Joint Series |
|
1880 |
| Universal Joint Retaining Width |
|
8.094 |
| Universal Joint Bearing Diameter |
D |
2.188 |
| Flange Diameter |
A |
9.562 |
| Bolt Circle Diameter |
B |
8.250 |
| Horizontal Distance Between Holes (center to center) |
|
0.000 |
| Vertical Distance Between Holes (center to center) |
|
0.000 |
| Bolt Hole Diameter |
|
.625-D |
| Bolt Hole Quantity |
|
8.000 |
| Pilot Diameter (M-Male, F-Female) |
C |
7.000M |
| Centerline of Joint to Flange Face |
G |
3.500 |
| Compatible U-Joint Kits |
|
SPI-5-308X |
| |
|
0.000 |
| Notes |
|
|
| Cast/Forged |
|
|
This part is used in the following assemblies or kits:
SPI-906550-5 - DRIVESHAFT S.C.
SPI-906550-5 - DRIVESHAFT S.C.
SPI-908942-1 - SHORT COUPLE
SPI-908942-1 - SHORT COUPLE
SPI-917791-1 - IRRIGATION DRIVESHAFT
SPI-917791-1 - IRRIGATION DRIVESHAFT
SPI-917791-2 - IRRIGATION DRIVESHAFT
SPI-917791-2 - IRRIGATION DRIVESHAFT
